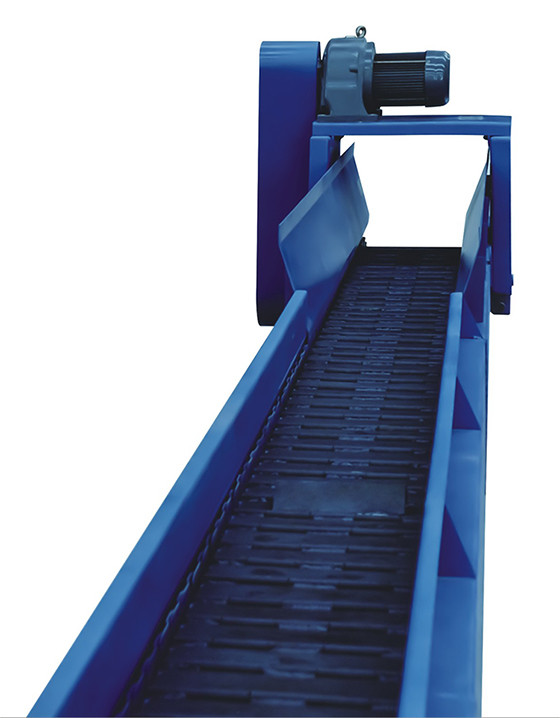

加重链板式排屑机

Weighted chain plate chip conveyor

性能、特点与用途 Performance，characteristics and application

此装置是将械加工过程中产生的切削收集、输送至集屑箱中的机床辅助设备。可广泛应用于重型机床、组合机床加工中心、专机自动线产生的长屑、团屑和特殊材料切屑的输送。输送效率高、排屑量大,链条节距为101.6mm/150mm,链板采用5-8mm钢板,结构为铰接式链板。主要零部件均经耐磨及耐腐蚀处理,工作运转平稳,配有机械过载保护装置,安全可靠。(电气过载报警装置可选配)此装置是重型机床单机或车间集中排屑线的理想配套产品。

HRJLB series extra-heavy hinged belt chipconveyor collects and transports chips whichproduce by machining process to collecting box. This product can be widely used for transporting long chips, rolled chips and special material chips which are produced by heavy

machine tools, combination machine tools,machining centers. professional machine lines and automatic production lines. It is more efficient and removes more chips. The pitch of chain is 101.6mm/150mm, and hinged belt is 5 to 8 mm thickness. Main parts of the chip

conveyor have been produced against abrasion and corrosion. This product is equipped with mechanical overload protection device and current overload alarm device, it is safe, reliable and working steadily.

This device is an ideal product for heavy machine tool and centralized conveyor line in workshop.
